UTL 3kW On-Grid Solar System | Price & Install
UTL Solar System
The UTL 3kW On-Grid Solar System has become the best option for Indian homes today that are struggling with rising electricity bills and are looking for a long-term solution. Government solar subsidy schemes and net-metering facilities have made on-grid solar systems affordable for middle-class families.
₹1,70,000 – ₹1,80,000
UTL is a trusted Indian solar brand that offers quality inverters, high-efficiency panels, and strong after-sales support. In this detailed guide, we will understand, at a ground level, what the UTL 3kW On-Grid Solar System is, how it works, the complete installation process at home, the total price, subsidies, required documents, and whether this system is right for you.
| Specification | Details |
|---|---|
| System Capacity | 3 Kilowatt |
| System Type | On-Grid |
| Inverter Brand | UTL |
| Inverter Warranty | 10 Years |
| Solar Panel | 580W TOPCon Bifacial |
| Panels Required | 5–6 (Approx) |
| Daily Generation | 12–15 Units |
| Battery | Not Required |
| Net Metering | Required |
| System Life | 25 Years |
- Direct grid connection, no battery tension
- High-efficiency TOPCon bifacial panels
- Smart grid-tie inverter with monitoring
- Low maintenance & long life
- Government subsidy eligible
- Best for homes with day-time usage
What is the UTL Solar System and how does it work?
The UTL 3kW On-Grid Solar System works by connecting directly to the electricity grid. During the day, the solar panels generate electricity from sunlight.
This electricity is first used in your home, and any excess power is sent back to the grid through a net meter.
- At night, or when solar production is low, you draw electricity from the grid.
- 👉 It does not have a battery, which keeps the cost low and maintenance easy.

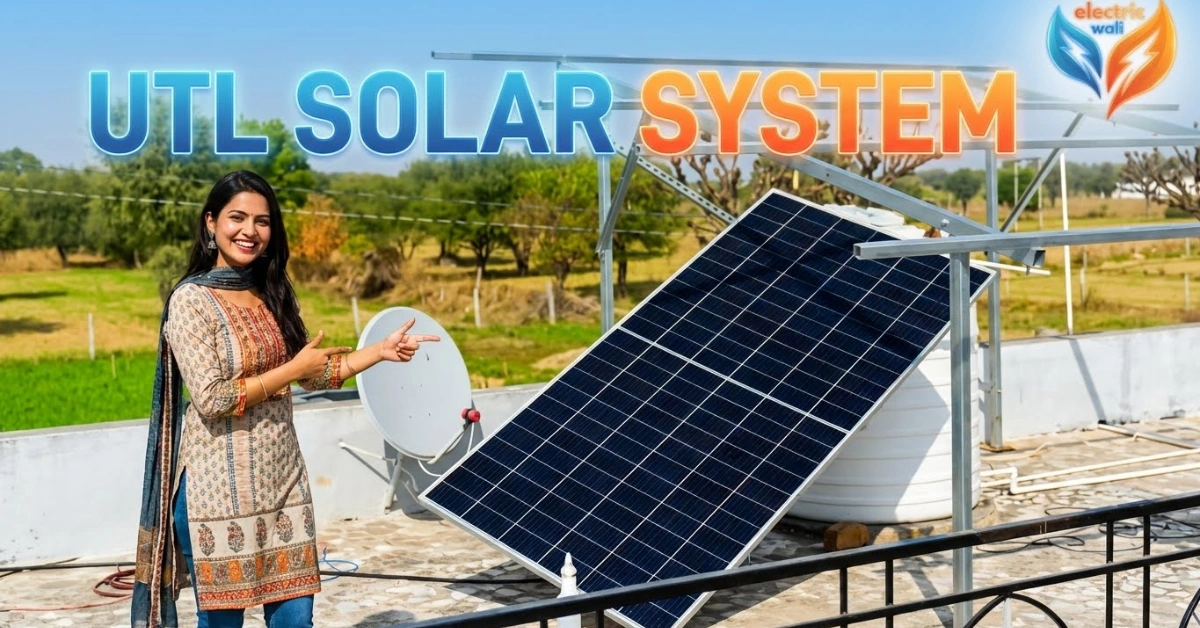

Rooftop Solar Structure and Panel Installation Process
The installation begins with a roof inspection. A shadow-free area is selected.
Step-by-Step Process:
- Roof marking & drilling
- Heavy-duty mounting structure fitting
- South-facing panel alignment
- C-type purlin for extra strength
- Panels loose-fit → final tightening
- Next-day foundation strengthening
This structure keeps the panels safe even in strong winds and heavy rain.
Wiring, Lightning Arrester, and Safety System
- DC wires are routed through conduit pipes
- Panels are connected in series using MC4 connectors
- Wiring is secured to the structure with cable ties
- Lightning arrester installation
- 3 separate earthing points (DC, AC, LA)
This safety system ensures a lifespan of 25+ years.
Inverter, ACDB-DCDB Installation Process
UTL’s 3kW grid-tie inverter is wall-mounted.
- Wall marking with leveler
- ACDB & DCDB box installation
- DC input from panels
- AC output to main distribution board
- Earthing connection
Inverter starts only when grid supply is available.
UTL 3kW On-Grid Solar System Price & Subsidy
Price Details
| Item | Price (Approx) |
|---|---|
| Complete System Cost | ₹1,70,000 – ₹1,80,000 |
| Price After Subsidy | ₹90,000 – ₹1,00,000 |
| Maintenance Cost | Very Low |
Government Subsidy
✔️ Central Govt Subsidy: ₹78,000 (Approx)
✔️ Only for domestic connection
✔️ Commercial connection = No subsidy
✔️ State subsidy may vary
Top Variants of UTL Solar Systems
| Model | Price (Approx) | System Type | Daily Units |
|---|---|---|---|
| UTL 1kW | ₹60k–70k | On-Grid | 4–5 |
| UTL 3kW | ₹1.7L–1.8L | On-Grid | 12–15 |
| UTL 5kW | ₹2.8L–3L | On-Grid | 22–25 |
Top Competitor Comparison
| Brand | Price (Approx) |
|---|---|
| UTL 3kW | ₹1.7–1.8L |
| Luminous 3kW | ₹1.8–1.9L |
| Havells 3kW | ₹1.9–2L |
| Tata Solar 3kW | ₹2L+ |
Should You Buy a UTL 3kW On-Grid Solar System?
If your home has:
✔️ High daytime electricity usage
✔️ A stable grid supply
✔️ And you want long-term savings
Then the UTL 3kW On-Grid Solar System is an excellent choice.
⚠️ If you experience frequent power cuts, a hybrid system would be a better option.
Why Switch to Solar?
Zero Electricity Bills
Get rid of rising electricity prices. After installing solar panels, your monthly electricity cost can be reduced by 80–90%, which is a significant saving in the long run.
Free & Endless Energy
Sunlight will never run out. As long as there is sunshine, you will have free electricity. This is an investment that will give you returns for 25 years.
Clean & Green Life
Solar energy produces no carbon emissions. By adopting it, you contribute to saving the environment and provide clean air for future generations.
Govt. Subsidy Benefits
The government provides substantial subsidies for installing solar panels. This means your initial cost is reduced, and the solar system becomes very affordable.
Increase Property Value
A house or building with solar panels installed increases in market value. It makes your property modern and energy-efficient.
Set it & Forget it
Solar panels have no moving parts, so they require very little maintenance. You only need to clean the dust occasionally; everything else runs automatically.
❓ FAQs
Q1. UTL 3kW On-Grid Solar System daily kitni unit banata hai?
Ans: Location aur sunlight par depend karta hai, lekin average 12–15 units per day generate karta hai.
Q2. Is system me battery lagti hai?
Ans: Nahi, on-grid solar system me battery nahi hoti. Ye directly electricity grid ke sath kaam karta hai.
Q3. Net meter ka process kaun karta hai?
Ans: Solar installation company net metering, documentation aur approval ka pura process handle karti hai.
Q4. Warranty kitni milti hai?
Ans: Solar panel par 25 years performance warranty aur inverter par 10 years warranty milti hai.
Q5. Loan facility available hai?
Ans: Haan, kai banks aur NBFCs ke through solar loan facility available hoti hai.
